irisandClaude Fable 5.1 69525bd131 iris: a Rect is not size-independent, and P1a's block appearance verified ...

The defect P1a's screenshots found, and the one that mattered:
`Rect::is_size_independent()` answered `true`. A `Rect` fills whatever
region it is handed, so its content *is* the region -- and
`draw_inner`'s fast path, which rewrites a widget's primitives with
`r.outside(&from).within(&region)` instead of redrawing it, cannot
reproduce that once a region carries both `rel` and `abs`. What it
looked like: a fenced code block's background kept the height of the
provisional full-region draw `Span` does in its first phase, so one
fence's panel covered every block below it and every row below that,
with the text underneath laid out correctly. Likely the same cause as
RUST.md's older "the composer bar's grey background is not drawn".

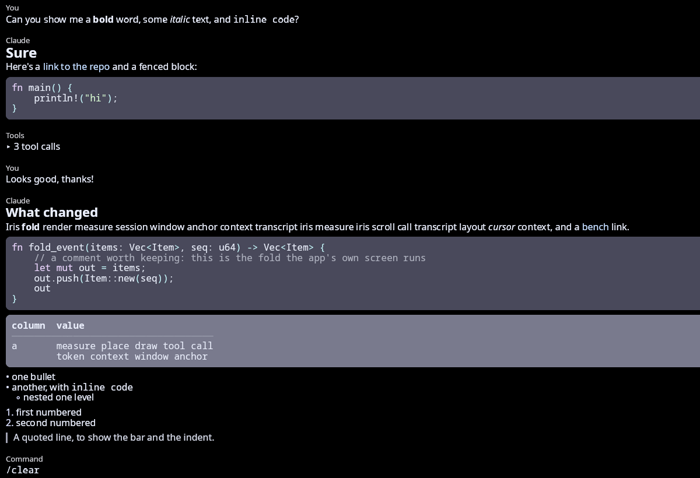

Also here: a quote's bar is a `Stack` background behind padded text
rather than a two-child `Span(Dir::RIGHT)` (one widget fewer and no
provisional pass), and `transcript-ui`'s `transcript` example gains a
row holding one of every block kind -- the fixture's own heading,
paragraph, fence and table source, plus a list and a quote, which the
fixture has neither of.

docs/bench/p1a-2026-09-06/ has the pairs and docs/RUST.md's P1a box
names what still differs. The iris half is from the desktop backend
because this emulator cannot draw iris's glyphs at all (solid boxes,
reproduced on the previous commit, with Compose drawing text correctly
on the same AVD); both routes to Vulkan on this AVD were tried and both
fail. Bench stream phase, assertions live, no abort: p50 53.0ms p90
108.6ms p99 132.0ms against 52.8/108.1/137.3 before -- unchanged.
